Online Analysers For Waste Water Treatment

pH / ORP TRANSMITTER (AC or DC-4wire)

Model: AI201

  • Industrial Process Applications
  • pH Range: 0-14pH
  • ORP Range: -2000mV to +2000mV
  • Power Supply: 90-260 VAC / 24VDC
  • Outputs: 4-20mA, Relays, MODBUS
  • Temperature Compensation: Auto/ Manual
  • pH Accuracy: ± 01pH
  • ORP Accuracy: ± 1mV
  • IP65 Enclosure

pH / ORP TRANSMITTER (2wire)

Model: AI201- 2wire

  • Industrial Process and Waste Water Applications
  • pH Range: 0-14pH
  • ORP Range: -2000mV to +2000mV
  • Power Supply: 24 VDC
  • Outputs: 4-20mA Loop Powered (2 Wire)
  • Temperature Compensation: Auto/ Manual
  • pH Accuracy: ± 01pH
  • ORP Accuracy: ± 1mV

pH / ORP SENSOR W/O TEMPERATURE COMPENSATION

  • PVC body MoC pH/ ORP sensor without temperature compensation for effluent and raw water applications

pH / ORP SENSOR WITH TEMPERATURE COMPENSATION

  • Ryton Body MoC pH/ ORP sensor with temperature compensation for all general applications
  • Special category pH sensors with Kynar body MoC for harsh chemical services

CONDUCTIVITY TRANSMITTER (AC or DC 4wire)

Model: AI401

  • Industrial Process Applications
  • Conductivity Range: 0 µS through 2000 mS
  • TDS Range: 0 to 1,33,000 ppm
  • Power Supply: 90-260 VAC/ 24 VDC
  • Outputs: 4-20mA, Relays, MODBUS
  • Temperature Compensation: Auto/ Manual
  • Accuracy: ± 1% of FS
  • IP65 Enclosure

CONDUCTIVITY TRANSMITTER (2wire)

Model: AI401- 2wire

  • Industrial Process and Waste Water Applications
  • Conductivity Range: 0 µS through 200 mS
  • TDS Range: 0 to 99,999 ppm
  • Power Supply: 24 VDC
  • Outputs: 4-20mA Loop Powered (2 Wire)
  • Temperature Compensation: Auto/ Manual
  • Accuracy: ± 1% of FS
  • IP65 Enclosure

CONDUCTIVITY SENSORS

  • SS body conductivity sensors for K=0.01 and K=0.1 cell constant
  • Nylon body conductivity sensors for K=0.5 & K=1 or 10 cell constant

INDUCTIVE / TORROIDAL CONDUCTIVITY SENSOR

  • PP and PFA body non contact toroidal conductivity sensors for wide range conductivity measurement.
  • Conductivity Range: 0 – 2/20/200/2000 mS/cm
  • Salinity Range: 0 – 72 g/Kg

ONLINE DISSOLVED OXYGEN ANALYSER (PPM- DO)

Model: AI801

  • Aeration Tank Applications
  • DO Range: 0-20mg/L (ppm)
  • Power Supply: 90-260 VAC
  • Outputs: 4-20mA, Relays, MODBUS
  • Temperature Compensation: Auto/ Manual
  • DO Accuracy: ± 1 ppm
  • IP65 Enclosure

DO SENSOR

  • Country of Origin: France
  • Optical Luminance Technology
  • Body MoC: SS
  • Low Drift
  • Temperature: inbuilt
  • Comes with integral 5 mtrs cable
  • IP68 Sensor enclosure

TURBIDITY ANALYSER

Model: AI811

  • Industrial Process and Treated Water Applications
  • Turbidity Range: 0-3000 NTU
  • Power Supply: 100-240 VAC
  • Outputs: 4-20mA
  • Turbidity Accuracy: ± 2% of FS
  • Resolution:
  • For Range 0 to 99.9 NTU: 0.1
  • For Range 100 to 499 NTU: 1
  • For Range 500 to 3000 NTU: 5
  • IP65 Enclosure

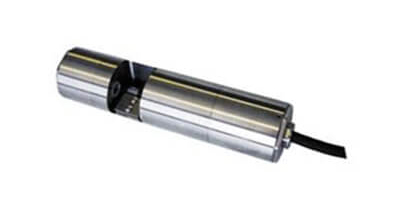

SENSOR

  • Nephelometric 90Deg Light Scattering Technology
  • Body MoC: SS
  • Operating Temperature: upto 40 DegC
  • Comes with integral 3 mtrs cable
  • IP68 Sensor enclosure

TSS ANALYSER

Model: AI841

  • Industrial Process and Treated Water Applications
  • TSS Range: 0-1000 mg/L (ppm)
  • Power Supply: 100-240 VAC
  • Outputs: 4-20mA & Relays
  • Accuracy: <5% of the reading
  • IP65 Enclosure

SENSOR

  • Body MoC of the Sensor: SS316 or (SS Duplex suitable for sea water applications and water with chloride content)
  • Sensor comes with 9 mtrs integral cable
  • IP68 Sensor enclosure

HARDNESS ANALYSER

  • Calorimetric measurement principle
  • Country of Origin: Italy
  • Output: 2 nos of programmable relay outputs and 1 no. of 4 -20mA analog.
  • Range:Total Hardness: 5 through 500 ppmCalcium Carbonate Hardness: 5 through 160ppm

MLSS ANALYSER

Model: AI845

  • Measuring Range: 0-50,000 ppm
  • Temperature Compensation: No
  • Outputs: 4-20mA, isolated, max load 500Ω
  • Relay Outputs: Two relay outputs + One multifunctional relay
  • Accuracy: 3% of reading or 300ppm whichever is greater
  • Sensor: Scattered light method
  • Sensor Protection: IP68

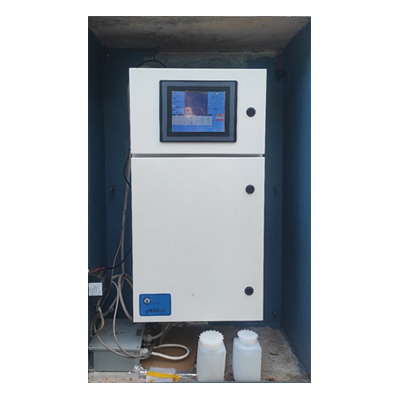

ONLINE 4 in 1 MULTIPARAMETER
COD, BOD, TSS pH ANALYSER

  • Measuring Principle: UV 254 nm absorption full spectrum scanning
  • Power Supply: 230VAC
  • Output: RS485
  • Self cleaning feature available
  • Wall/ Structure mounting panel complying to IP55, comes with an 8” TFT screen for display of measured readings
  • Country of Origin: Italy

MEASURING RANGES:

a)COD: 500 mg/L
b) BOD: 100 mg/L
c) TSS: 150 NTU
d) pH: 0-14

ANALYSER TO MEASURE FLUORIDE, CHLORIDE, NITRITE, AMMONIA, HARDNESS ANALYSERS USING ION

SELECTIVE ELECTRODES

Model: AI821-ISE

  • Power Supply: 90-260 VAC, IP65.
  • Range: 0.00 to 20,000 ppm (Selectable for different ranges)
  • Temperature: -10.0 to +130.0°C (PT1000/NTC10K)
  • Power Supply: 90 – 260 VAC
  • Outputs: 4-20mA, Relay & RS485
  • IP Rating: IP65
  • Display: Colour Graphical LCD

ION SELECTIVE SENSORS

  • Fluoride, Chloride, Nitrite, Ammonia, Hardness etc
  • Combination ISE sensor comes with integral cable
  • Range: Please Specify
  • Required pH: varies depending upon the measuring parameter
  • Operating Temperature: 0 to 50°C

Interferences: varies depending upon the measuring parameter and shall be provided upon request

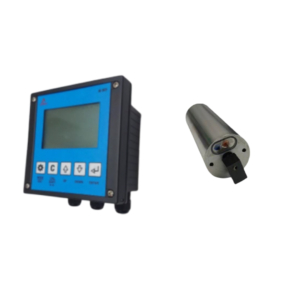

OIL IN WATER ANALYSER

  • Model: AI-845
  • Sensor type: UV Fluorescence method
  • Suitable for treated water, surface water, waste water
  • Range: 0-100 ppm
  • Accuracy: 3% of the reading
  • Power Supply: 230VAC
  • Outputs: Analog 4-20mA and Relay contacts
  • Cleaning System: Wiper (Automatic)
  • Cleaning Cycle: Programmable
  • Sensor MoC: SS316L
  • Sensor Protection: IP68
  • Sensor comes with integral 5 mtrs cable

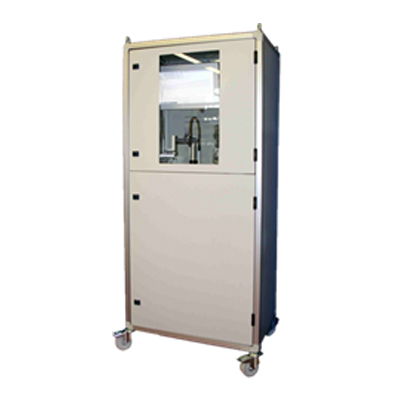

ONLINE E-COLI/ TOTAL COLI IN WATER

  • Measuring Principle: Colorimetric (Total Coliforms) & Fluorometric: E-Coli
  • Measurement Type: Fully Automatic
  • Measurement Sensitivity: 1 CFU / 100 mL (P/A) 1.8 – 1,250 up to 17,500 MPN / 100 mL (MTF)
  • Measurement frequency: Upto 12 samples/day
  • Measuring duration: 3-18 hrs depending on the sample
  • Output Signal: RS485
